• EV-PEAK UD2-100
    3000W 35A Dual-Channel 24S UAV Battery Charger

    Designed for 20S–24S high-voltage UAV battery systems, with a strong focus on 24S batteries for professional UAV and eVTOL applications.

    3000W | 35A Max. | 2 Channels | 20S–24S

Built for 24S High-Voltage UAV Battery Systems

Designed for 20S–24S batteries, the UD2-100 is particularly suited to 24S high-voltage battery systems used in professional UAV and eVTOL applications.

Large Agricultural UAVs

For high-capacity 24S battery systems used in large agricultural spraying and field-operation drones.

Heavy-Lift UAVs

For high-voltage battery systems powering heavy-payload multirotor and industrial UAV platforms.

Cargo & Logistics UAVs

For 24S battery systems used in cargo transport, delivery and professional logistics UAVs.

eVTOL Platforms

UD2-100 has been used by customers to charge 24S battery systems for eVTOL applications.

Dual-Channel Charging

Charge one or two UAV batteries with independent channel control.

35A Max.
Single-channel charging

25A × 2
Maximum current per channel when charging two batteries simultaneously

Output current is subject to the charger’s maximum available output power and battery conditions.


Three Charging Modes


Choose the charging current to match different battery and operating requirements.


SLOW

15A


Lower-current charging for applications where a slower charging rate is preferred.


NORMAL

25A


A balanced charging mode for routine UAV battery charging.


FAST

35A


Maximum charging current for faster turnaround when operating conditions allow.


AUTOMATED CHARGING


Automatic Battery Recognition & Charging


Connect the battery and the UD2-100 automatically recognizes it,
starts a countdown and begins charging when the countdown is complete.


STEP 01


Connect Battery


Connect the UAV battery through the required charging and balance interfaces.


STEP 02


Battery Recognized


The charger automatically identifies the connected battery information.


STEP 03


Automatic Countdown


Once the battery is recognized, the automatic charging countdown begins.


STEP 04


Charging Starts


Charging starts automatically when the countdown is complete.


SMART OPERATION


Intelligent Control & Monitoring


Integrated monitoring and convenience features help operators manage routine UAV battery charging more efficiently.


BLUETOOTH & APP


Remote Monitoring & Control


Bluetooth connectivity and APP support provide convenient access to charging information and operating controls.


LCD MONITORING


Real-Time Charging Information


The LCD displays operating mode, battery voltage, current, charging time and battery status.


VOICE GUIDANCE


Intelligent Voice Prompts


Voice guidance provides audible operating prompts during the charging process.


MOBILE DEVICE CHARGING


Smartphone Wireless Charging


The top wireless charging area can be used with compatible smartphones and mobile devices.


THERMAL MANAGEMENT & SAFETY


Cooling & Protection


The UD2-100 combines forced-air cooling with a metal housing to support heat dissipation during high-power UAV battery charging.


Forced-Air Cooling


Integrated cooling fans work with the metal housing to help manage operating temperature during charging.


Protection Functions



Short-Circuit Protection


Reverse-Polarity Protection


Reverse-Connection Protection


Over-Charge Protection


Over-Current Protection


BATTERY INTEGRATION


Interfaces & Communication


The UD2-100 supports smart battery communication and dedicated charging interfaces for integration with professional UAV battery systems.


Smart Battery Communication


UAVCAN

Default


DroneCAN

Configurable


RS485

Custom Option


Charging Interfaces


AS150U

Main Charging Connector


MX34028-28P Female

Balance Connector

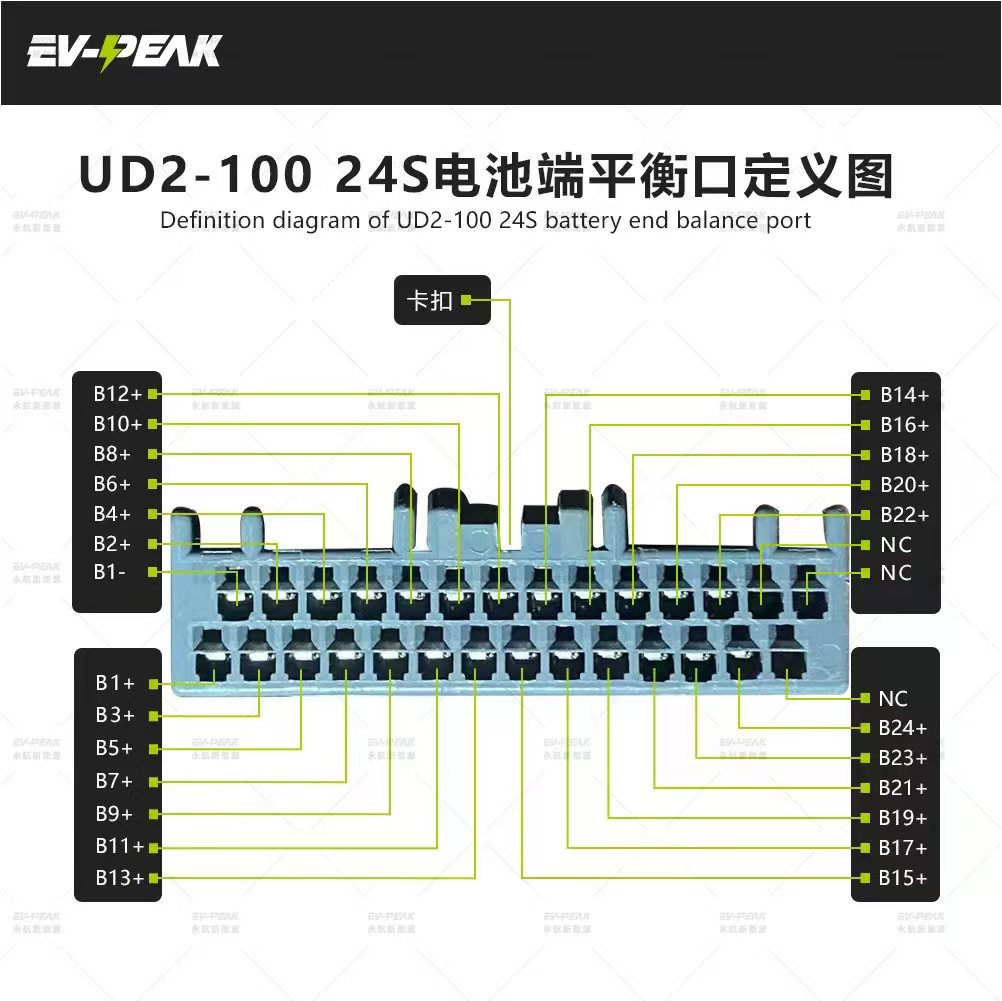

24S Balance Port Pinout


MX34028-28P female balance connector definition for UD2-100 24S battery systems, including B1−, B1+ through B24+ and NC positions.

TECHNICAL DATA

规格

Model EV-PEAK UD2-100
Product Type Dual-Channel Intelligent UAV Battery Charger
AC Input Voltage 100–240V AC
Maximum Output Power 3000W at 220V input; approximately 1500W at 110V input
Battery Type LiPo / LiHV / Intelligent Battery
Battery Cell Count 20S–24S
Primary Battery Application 24S high-voltage UAV battery systems
Charging Channels 2 independent channels
Simultaneous Charging Up to 2 batteries
Maximum Charging Current 35A in single-channel operation
Dual-Channel Charging Current Up to 25A per channel when charging two batteries simultaneously
Slow Mode 15A
Normal Mode 25A
Fast Mode 35A
Battery Recognition Automatic battery recognition
Automatic Charging Automatic countdown followed by automatic charging start
Balance Accuracy ±20mV
Smart Battery Communication UAVCAN — Default / DroneCAN — Configurable / RS485 — Custom Option
Main Charging Connector AS150U
Balance Connector MX34028-28P Female
Cooling Fan-forced air cooling with metal housing
Protection Short circuit / Reverse polarity / Reverse connection /
Over-charge / Over-current
Bluetooth & APP Supported
Voice Guidance Supported
Smartphone Wireless Charging Supported for compatible smartphones and mobile devices
Dimensions 300 × 180 × 215 mm
Weight 7.1 kg
Charging current represents the charger’s maximum current capability.
Actual available charging current depends on battery voltage, battery condition,
charging mode and the charger’s maximum available output power.
FREQUENTLY ASKED QUESTIONS

UD2-100 FAQ

Key information about battery compatibility, charging current, communication and system integration.

What batteries are compatible with the EV-PEAK UD2-100?

The UD2-100 supports 20S–24S LiPo, LiHV and intelligent UAV batteries. It is particularly suited to 24S high-voltage battery systems used in professional UAV applications.

Is the UD2-100 designed for 24S UAV batteries?

Yes. Although the supported battery range is 20S–24S, 24S battery systems are a primary application of the UD2-100, including large agricultural UAVs, heavy-lift drones, cargo UAVs and other high-voltage platforms.

Can the UD2-100 charge two batteries at the same time?

Yes. The UD2-100 has two independent charging channels and can charge two batteries simultaneously. During dual-channel charging, the maximum charging current is up to 25A per channel, subject to the charger’s available output power and battery conditions.

What is the maximum charging current of the UD2-100?

The maximum charging current is 35A in single-channel operation. When two batteries are charged simultaneously, each channel can provide up to 25A. Actual charging current also depends on battery voltage, charging mode and available charger output power.

What are the Slow, Normal and Fast charging modes?

The UD2-100 provides three selectable charging modes: Slow — 15A, Normal — 25A and Fast — 35A.

What output power does the UD2-100 provide at 110V and 220V input?

Maximum output power is 3000W at 220V input. At 110V input, maximum available output power is approximately 1500W.

Does the UD2-100 automatically recognize and start charging the battery?

Yes. After a compatible battery is connected, the UD2-100 automatically recognizes the battery and starts a countdown. Charging begins automatically when the countdown is complete.

Which communication protocols does the UD2-100 support?

The UD2-100 uses UAVCAN as the default smart battery communication protocol. DroneCAN can be configured, while RS485 is available as a custom option.

What charging and balance connectors does the UD2-100 use?

The main charging connector is AS150U, and the balance connector is an MX34028-28P female connector. Battery-side compatibility should be confirmed before integration.

Can the UD2-100 be used to charge 24S eVTOL batteries?

The UD2-100 has been used by customers to charge 24S battery systems for eVTOL applications. Compatibility should be confirmed according to battery voltage, chemistry, charging current, communication protocol and connector configuration.

Does the UD2-100 wirelessly charge UAV batteries?

No. UAV batteries are charged through the dedicated charging and balance interfaces. The wireless charging area on the UD2-100 is intended for compatible smartphones and mobile devices.


Need Help Choosing the Right UAV Charger?


Share your battery cell count, capacity, required charging current,
number of batteries to be charged simultaneously, and communication
requirements. EV-PEAK can help you select the appropriate charging
solution for your UAV battery system.


For OEM and system-integration projects, custom communication
requirements, including RS485 integration, can also be discussed
with our team.
