• U1 Neo 550W Single-Channel Battery Charger

    Compact and powerful charging for 2–8S LiPo, LiHV and CAN-enabled smart batteries.
    Up to 21A adjustable charging current for flexible battery charging.

    550W Max.   |
    21A Max.   |
    2–8S

    LiPo · LiHV · CAN Smart Battery Support

  • U1 Neo 550W
    Battery Charger

    Single-channel charging for 2–8S LiPo, LiHV and smart batteries.

    550W Max.
    21A Max.   |
    2–8S

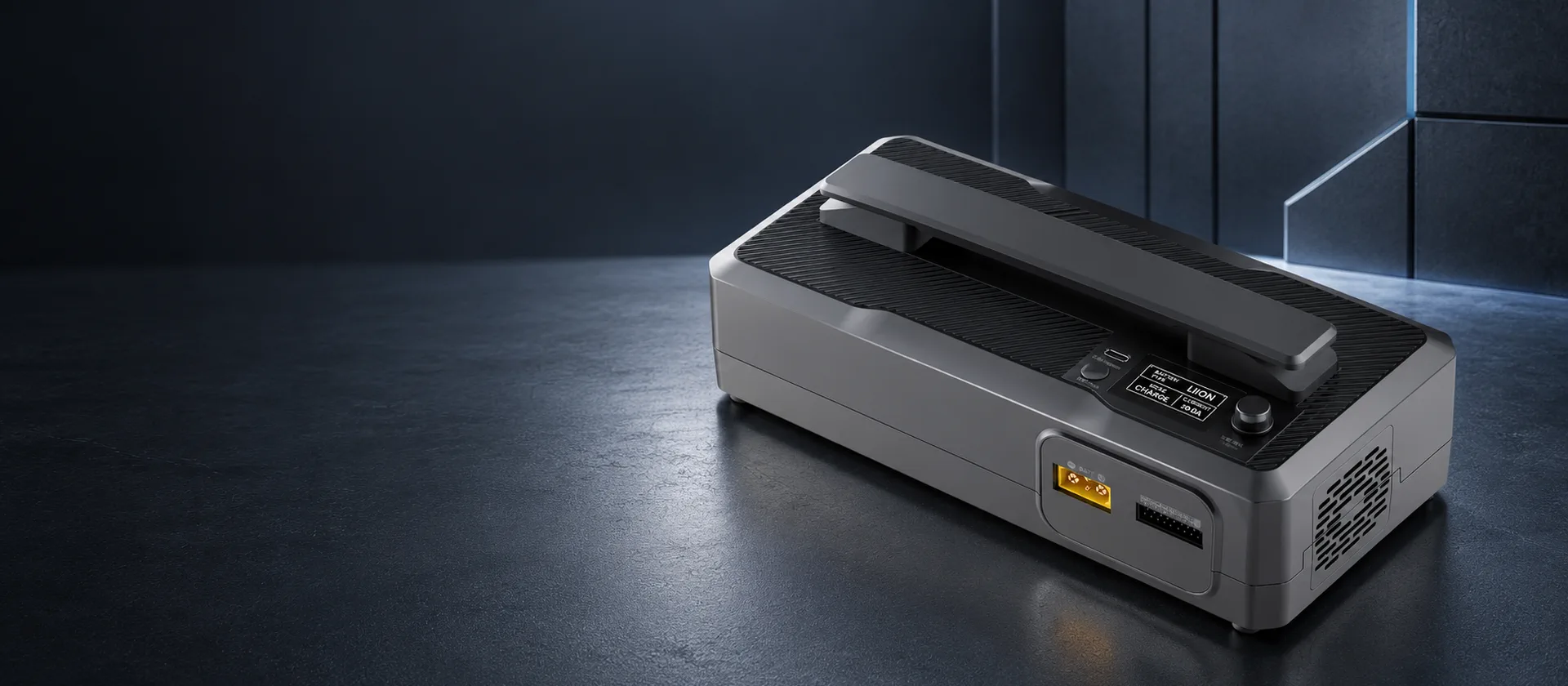

EV-PEAK U1 Neo


Compact Charging for 2–8S LiPo, LiHV & Smart Batteries

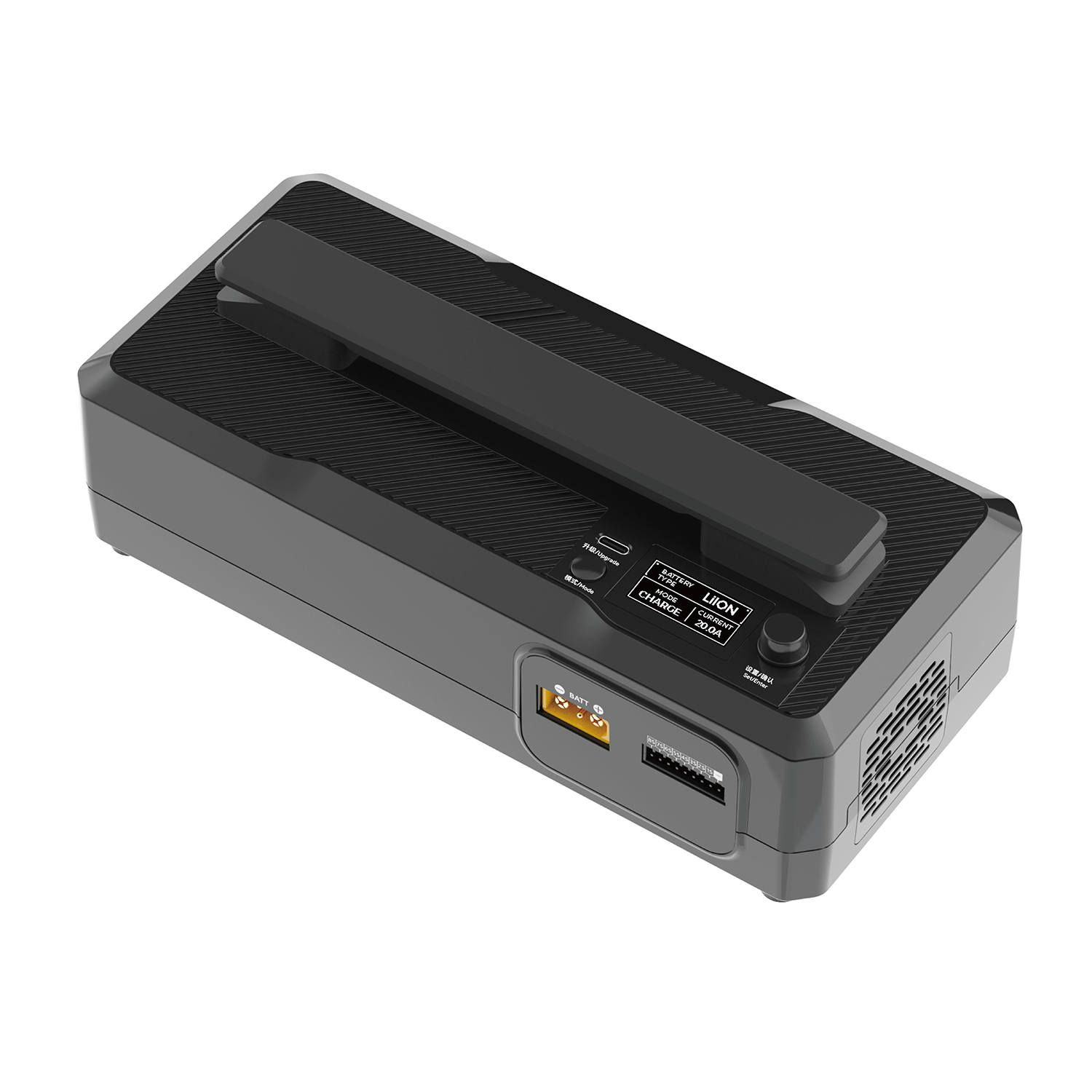

The EV-PEAK U1 Neo is a compact single-channel battery charger designed
for 2–8S LiPo, LiHV and compatible smart batteries. With up to 550W charging
power and a maximum adjustable charging current of 21A, it provides a
practical charging solution for UAV, drone and high-capacity lithium battery applications.


550W

MAX. CHARGING POWER


21A

MAX. CHARGING CURRENT


2–8S

LiPo / LiHV / SMART BATTERY

Design & Operation


Compact by Design.
Simple to Operate.


U1 Neo keeps the charging workflow clear and straightforward with a
compact single-channel layout, an onboard display and direct rotary
control. The integrated carry handle also makes the charger easy to
move and reposition when needed.



Single-Channel Layout


Focused charging control without unnecessary complexity.


Compact Display


Key charging information remains visible directly on the charger.


Direct Rotary Control


Simple adjustment and menu navigation from the onboard interface.

U1 Neo


Technical Specifications

Charging Channels
Single Channel
Maximum Charging Power
550W @ 220V AC / 300W @ 110V AC
Charging Current
Up to 21A, adjustable
Battery Cell Count
2–8S
Battery Types
LiPo / LiHV soft-pack batteries / compatible smart batteries
Storage Discharge
20W / up to 2A
Main Charging Connector
XT90
Balance Connector
JST-XH
Smart Battery Communication
CAN
Default Protocol
UAVCAN
DroneCAN Support
Available through firmware configuration or firmware upgrade
Display
Integrated onboard display

Product FAQ


U1 Neo Frequently Asked Questions

The U1 Neo supports 2–8S LiPo and LiHV soft-pack batteries, as well as compatible smart batteries.

The U1 Neo provides up to 550W charging power with 220V AC input. With 110V AC input, the maximum charging power is 300W.

The charging current is adjustable up to a maximum of 21A, allowing users to select an appropriate charging current for different battery capacities.

Yes. The U1 Neo supports Storage mode with up to 20W discharge power and a maximum discharge current of 2A.

The U1 Neo uses an XT90 main charging connector and a JST-XH balance connector.

Yes. The U1 Neo supports CAN communication for compatible smart batteries. UAVCAN is the default protocol, while DroneCAN can be supported through firmware configuration. EV-PEAK can configure the firmware before shipment, and customers can also perform firmware upgrades themselves.


Need Help Choosing the Right UAV Charger?


Share your battery cell count, capacity, required charging current,
number of batteries to be charged simultaneously, and communication
requirements. EV-PEAK can help you select the appropriate charging
solution for your UAV battery system.


For OEM and system-integration projects, custom communication
requirements, including RS485 integration, can also be discussed
with our team.
