6000W
Maximum Total Output
At AC 220V input
80A
Maximum Single-Channel Current
Up to 80A when charging one battery
2 CH
Dual-Channel Charging
Up to 40A × 2 simultaneously
14S–18S
Smart UAV Battery Range
LiPo and LiHV smart UAV batteries
SMART BATTERY FOCUS
Built for Smart UAV Batteries
Designed for 14S–18S LiPo and LiHV smart UAV batteries with integrated BMS communication.
AUTOMATIC RECOGNITION
Smart Battery Identification
Battery information is identified automatically after connection.
UAVCAN COMMUNICATION
UAVCAN Default
UAVCAN is standard, with DroneCAN available as a configurable option.
SMART BATTERY ARCHITECTURE
No Separate Balance Connection
Designed for compatible smart batteries without a separate external balance connector.

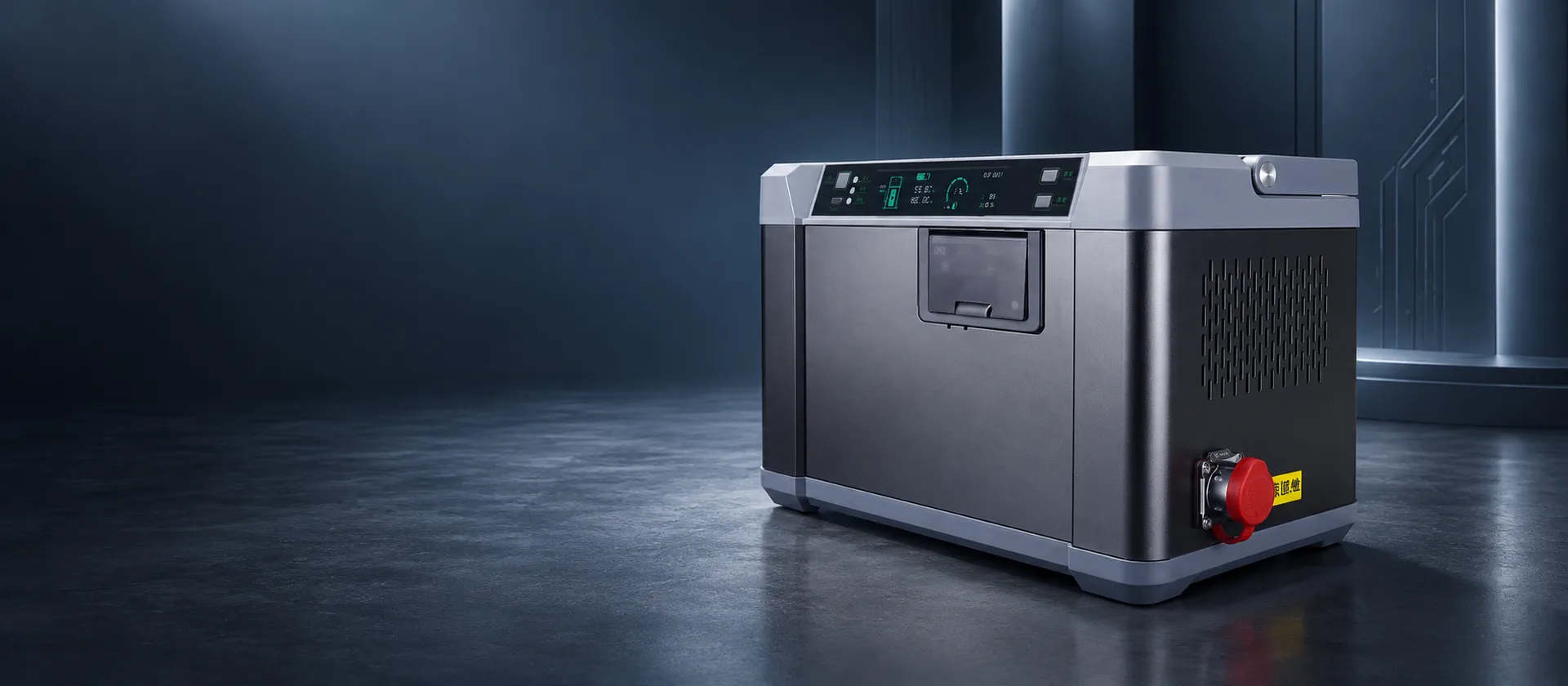

Model
EV-PEAK UD4
Supported Battery Range
14S–18S
Battery Types
LiPo / LiHV Smart UAV Batteries
Charging Channels
2 Channels
Simultaneous Charging
1 battery or 2 batteries simultaneously
Maximum Total Output @ AC 220V
6000W
Maximum Total Output @ AC 110V
3000W
Maximum Single-Channel Current
Up to 80A when charging one battery
Dual-Channel Charging Current
Up to 40A × 2 when charging two batteries simultaneously
Charging Modes
FAST: 80A | NORMAL: 60A | SLOW: 30A
Smart Battery Recognition
Automatic
Automatic Charging
Battery Recognition → Countdown → Automatic Charging
Smart Battery Communication
UAVCAN Default / DroneCAN Configurable
Main Charging Connector
AS150U
Separate Balance Connector
None
Bluetooth Control
Android App / WeChat Mini Program
Wireless Charging
Built-in wireless charging area for compatible smartphones and mobile devices
Voice Guidance
Charging status / Next-step guidance / Error notifications / Troubleshooting guidance
LCD Information
AC input voltage / Battery voltage / Charging current / Channel / SOC / Battery type / Error code / Temperature / Smart battery cycle count / Charge-discharge time
Protection
Over-charge / Over-voltage / Over-current / Reverse polarity / Short-circuit / Over-temperature
Cooling & Construction
Metal main body / Side-mounted cooling fan / Plastic upper and lower housings
Dimensions
300 × 180 × 215 mm
Weight
6.8 kg
Frequently Asked Questions
What batteries are compatible with the EV-PEAK UD4?
UD4 is designed for compatible 14S–18S LiPo and LiHV smart UAV batteries with BMS communication.
Can UD4 charge two batteries at the same time?
Yes. UD4 has two charging channels and can charge one battery or two batteries simultaneously.
What is the maximum charging current of UD4?
UD4 supports up to 80A when charging one battery. When two batteries are charged simultaneously, the maximum charging current is up to 40A per channel.
What is the maximum output power of UD4?
UD4 provides up to 6000W total output at AC 220V input. At AC 110V input, maximum output is reduced to approximately 3000W.
What charging modes does UD4 support?
UD4 provides three charging modes: FAST 80A, NORMAL 60A and SLOW 30A.
Does UD4 automatically recognize smart batteries?
Yes. After a compatible smart UAV battery is connected, UD4 automatically recognizes the battery, enters a countdown and then starts charging automatically.
What communication protocols does UD4 support?
UAVCAN is the default smart battery communication protocol. DroneCAN can be configured according to compatible battery system requirements.
Does UD4 require a separate balance connector?
No. UD4 is designed for compatible smart UAV batteries and does not use a separate external balance connector.
Need Help Choosing the Right UAV Charger?
Share your battery cell count, capacity, required charging current,
number of batteries to be charged simultaneously, and communication
requirements. EV-PEAK can help you select the appropriate charging
solution for your UAV battery system.
For OEM and system-integration projects, custom communication
requirements, including RS485 integration, can also be discussed
with our team.
