• EV-PEAK U3
    1200W/25A
    Dual Channels Intelligent Balance Charger

    Applied to Agriculture Drone / Inspection / Aerial photography / Firefighting / Mapping/ Patrols/ Plant Protection

Product Details

Specifications

Product Manual

Product Bullet Point

The EV-PEAK U3 dual charger is designed for agricultural spraying drone.
It features a large LCD screen and user friendly interface that gives you better clarity while charging.

Dual Channel

Charging 2 Batteries at once More Convenient

1200W

Up to 1200W

Fast Charging

Super Large Battery Current at 25A

More Secure

Multiple Protection System

Dual Channel Independent Output

This drone charger supports dual channel independent output,
which means you can charge 2 batteries at the same time. It also has smart charging technology
that intelligently recognizes the voltage level of each battery and charges
them as the order from highest to lowest voltage at max.25A.

Multi-protection System

This drone battery charger is designed to charge the battery quickly and safely. It has multiple protection systems including over-current, over-voltage, over-charge, and over-temperature protection systems that ensure your devices are charged properly.

Super Easy Operation

This battery charger is specially designed for agricultural drones,
it’s easy to operate and charge your drone battery. Just press the start button to begin charging,
the automatic recognition of battery information and no cumbersome
settings are also two major features.

LCD Intuitive Display

The LCD screen shows charging information such as the operating mode, battery current, battery voltage, charging time, battery capacity, etc. in real time and ensures that your batteries are fully charged for optimal flight times.

Powerful Heat
Dissipation

EV-PEAK’s drone charger has a strong, lightweight aluminum alloy frame and a large-scale aluminum heat sink. Its fireproof and dissipating performance can prevent burnout from lightning strikes, overvoltage, or power surges that can damage batteries and chargers.

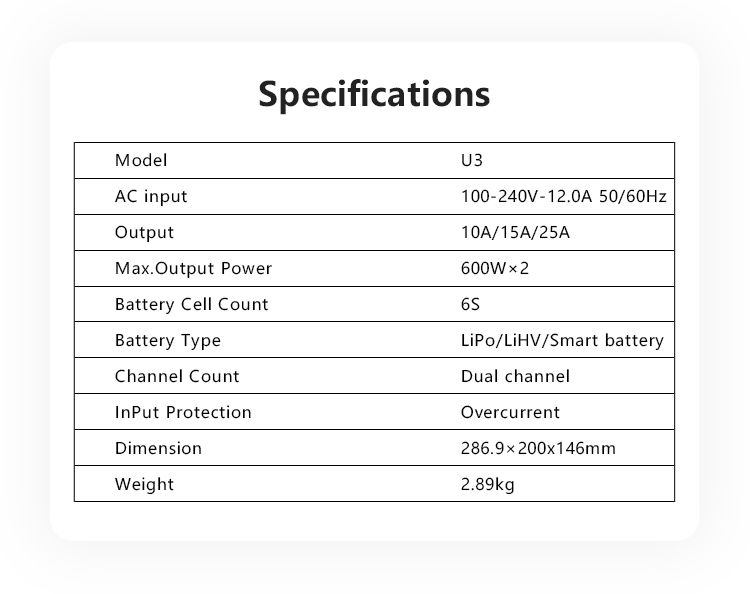

Specifications

Model: U3

AC input : 100-240V-12.0A 50/60Hz

Output: 10A/15A/25A

Max.Output Power: 600W×2

Battery Cell Count: 6S

Battery Type: LiPo/LiHV/Smart battery

Channel Count: Dual channel

InPut Protection: Overcurrent

Dimension: 286.9×200x146mm

Weight: 2.89kg
